E330A
E330A
RISC-V 32-bit Architecture IPs

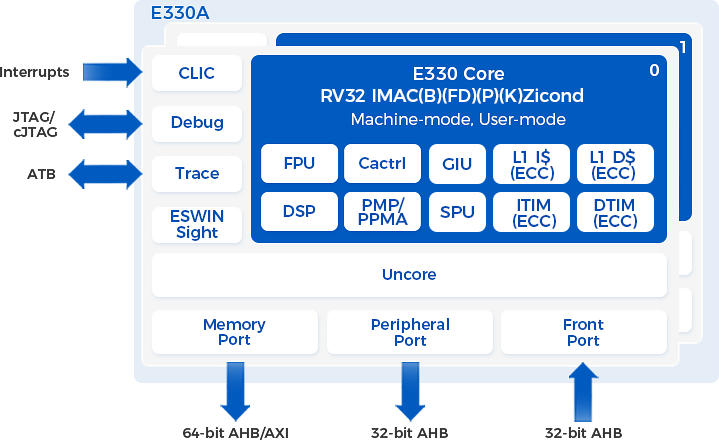

E330A:
ESWIN Computing E330A 32-bit functional-safety processor is a 32-bit RISC-V automotive grade CPU IP product with high-performance.
Based on E330, functional safety mechanism such as, Parity/ECC, SPM (Stack Pointer Monitor) and dual-core lock-step function were added to meet ASIL-D functional safety standards.
To ease user RTL simulation debugging, it provides an ESWIN Sight function to let users easily probe the internal state, registers and events.
Based on E330, functional safety mechanism such as, Parity/ECC, SPM (Stack Pointer Monitor) and dual-core lock-step function were added to meet ASIL-D functional safety standards.
To ease user RTL simulation debugging, it provides an ESWIN Sight function to let users easily probe the internal state, registers and events.
Features
| Features | Description | ||||
| ISA | RISC-V 32-bit IMAC(B)(FD)(P)(K)_Zicsr_Zifencei_Zicbom_Zicond_Zilsd_xewcie | ||||
| Modes | Machine-mode, User-mode | ||||
| Security | Supporting Smepmp, PMP Region can optional from 0 to 16 Supports PPMA (Programmable Physical Memory Attributes) check |
||||
| Pipeline | 6-stage superscalar in-order pipeline with Branch Predictor | ||||
| TIM | ITIM and DTIM, with configurable sizes from 0KB to 128MB, ECC optional | ||||
| L1 I$ | Size configurable from 4KB to 128KB. Parity/ECC optional | ||||
| L1 D$ | Size configurable from 4KB to 128KB. Parity/ECC optional | ||||
| Interrupt | CLIC interrupt controller, supports 496 interrupt requests and non-maskable interrupt (NMI) | ||||
| Debug | Debug module: supports JTAG/cJTAG Trace module: supports RISC-V N-Trace |
||||
| Bus Interface | 1.Memory Port:64-bit AHB/AXI master interface 2. Peripheral Port:32-bit AHB master interface 3. Front port :32-bit AHB slave interface, used for external access to TIM0 and TIM1 |
||||
| CoreMark（CoreMarks/MHz） | 5.77 | ||||
| Dhrystone-Legla（DMIPS/MHz） | 2.48 | ||||
